Total Stations

Total stations are an essential tool for land surveyors, civil engineering firms and construction professionals needing dependable, highly accurate layout capabilities. They deliver the exact structural reliability and technical precision needed to keep projects on time and within budget, minimizing costly measurement errors.

Monsen Engineering is your reliable partner for precise field data collection. We offer a full line of surveying equipment to support your project at every phase and back it with dedicated technical support and training.

Essential Surveying Equipment for Precision Layout

A total station is fundamental for surveying operations. This instrument integrates the functions of an electronic theodolite for measuring angles with electronic distance measurement (EDM). When absolute precision is required, total stations provide the proven reliability, straightforward operability and cost-effectiveness needed for everyday, multi-person crew work.

Types of Total Station Equipment

Trimble is one of the most prominent manufacturers of surveying equipment globally, known for their advanced technology and widespread adoption. Their instruments are built to high standards, offering durability and consistent performance in demanding field conditions.

Monsen Engineering provides high-performance hardware for fast-paced, real-world jobsites. From total stations for construction surveying to high-order control networks, we have a specialized solution for your project. Our selection of industry-leading Trimble equipment features high angular accuracy, long-range distance measurement and rugged, weather-resistant designs.

Our Trimble total stations include:

Trimble SX10

The Trimble SX10 is a high-performance scanning total station integrating high-accuracy measurement with fast 3D data capture. It operates at 26,600 points per second over a 600-meter range, enabling rapid data collection, 3D modeling and visual documentation in a single workflow. These features enable faster, more detailed data collection for topographic surveys, as-builts and forensic mapping.

The key characteristics of the Trimble SX10 include:

  • Angular accuracy: 1 inch
  • Scanning rate: 26.6 kilohertz (kHz)
  • Scanning range: Up to 600 meters
  • EDM diameter: ~14 millimeters
  • Trimble VISION™: Integrated camera system for visual context and remote operation
  • Red laser pointer: A visible red laser spot for targeting

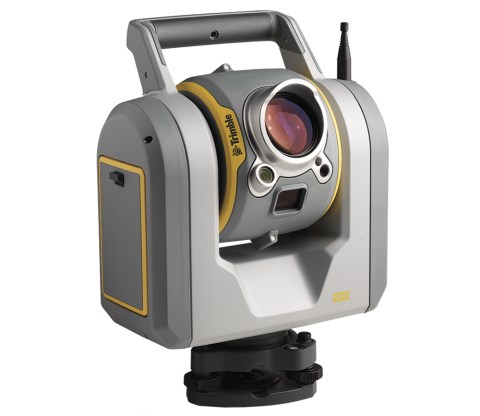

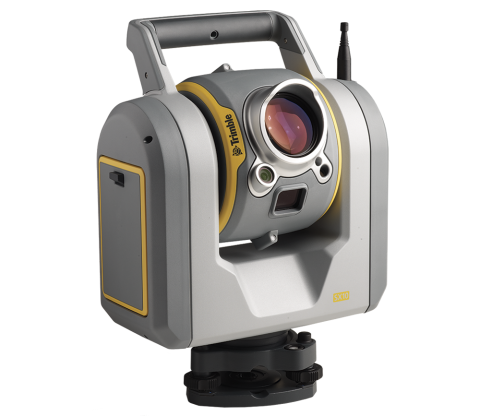

SX10 Total Station
Trimble SX12 Total Station

Trimble SX12

The Trimble SX12 is an advanced tool, a high-precision scanning robotic total station. It builds on the advanced features of SX10 models like Trimble Lightning 3DM technology to capture dense scans with 1-inch accuracy. This instrument features a 3-millimeter diameter laser spot at 50 meters for enhanced, eye-safe visibility.

This integrated solution meets the needs of most surveying tasks, from capturing site improvements in land title projects to scanning complex structures in as-built and industrial settings. Some key specs include:

  • Angular accuracy: 1 inch
  • Scanning rate: 26.6 kilohertz
  • Scanning range: Up to 600 meters
  • EDM diameter: 14 millimeters
  • Measuring time: ~1.2 seconds in DR mode and ~1.6 seconds in prism mode
  • Trimble VISION™: Integrated camera system for live video feed, remote operation and high-resolution imaging
  • Green laser pointer: A highly visible green laser spot for precise targeting

Integrated Office and Field Software

At Monsen Engineering, we understand accurate data collection is only half the equation. The equipment must connect seamlessly to your software to transform raw scan data and survey points into actionable information.

The Trimble RealWorks® Office Software and Trimble Business Center™ software allow you to send that data back to the office software, eliminating gaps, speeding processing and enabling precise volume calculations and reporting. Our scanning total stations are compatible with field software that streamlines data capture and standardizes forms on-site.

Find the Right Total Station Surveying Equipment for Your Next Project

Investing in the right total station surveying equipment ensures your measurements remain accurate for keeping projects effective and on schedule. Monsen Engineering is your one-stop shop for surveying solutions in the Intermountain West region. Browse our selection of total stations or contact us online to discuss your specific needs.
