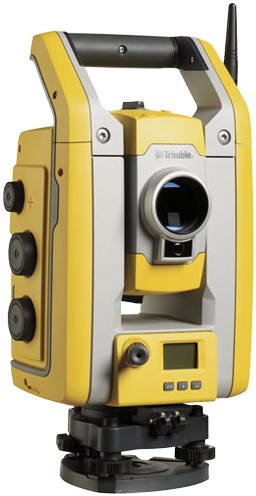

Trimble S5
The Trimble S5 robotic total station is engineered for surveyors and contractors who need dependable robotic performance for everyday work — without unnecessary complexity. Designed to support standard construction and land surveying workflows, the S5 delivers consistent measurements, efficient operation and reliable accuracy under real-world site conditions.
Reliable Robotic Performance for Daily Work
The Trimble S5 supports one-person operation through proven robotic tracking and precise angle measurement. Built on Trimble’s MagDrive™ servo technology and SurePoint™ active correction, the instrument delivers smooth, stable pointing while minimizing unwanted movement caused by wind, vibration or handling. This means quick movements between points, while maintaining accuracy.
Core Capabilities Built for Everyday Surveying
The Trimble S5 combines essential robotic technologies into a focused platform designed for reliability and efficiency:
- DR Plus EDM: For fast, long-range distance measurements
- SurePoint™ technology: To actively correct unwanted instrument movement
- MagDrive™ servo direct-drive system: For smooth tracking with fewer moving parts
- Robotic or Autolock® configurations: For ease, with optional manual follow-up
- Trimble Access field software: Integrated with Trimble Business Center
- Asset tracking and management: Through Trimble Locate2Protect and InSphere
Proven Angular Accuracy for Layout and Control
The Trimble S5 angular accuracy options support dependable and repeatable results across a wide range of applications. This consistent performance is critical for layout, control networks and verification tasks, where small errors can compound over time.
Combined with Trimble’s DR Plus EDM technology, the S5 provides reliable distance measurements that support quality assurance processes.
Trimble S5 Performance Highlights:
- Angle accuracy: 1-inch, 2-inch, 3-inch or 5-inch options
- EDM accuracy: 2 mm + 2 ppm (prism)
- Measurement range: Up to 2,500 m standard prism, up to 5,500 m long-range prism
- Prism tracking speed: 0.4 seconds
- Instrument weight: Approximately 5.4-5.5 kg
- Environmental protection: IP65 for rugged field use
Built to Withstand Jobsite Conditions
The Trimble S5 is designed for consistent operation across varying weather and site conditions — without compromising performance or reliability. Its rugged construction and IP65 environmental rating allow crews to maintain progress without interruptions caused by dust, moisture or changing field environments.
Seamless Software Integration
Like other Trimble instruments, the S5 integrates directly with Trimble field and office software. Data collected in the field transfers smoothly into the Trimble Business Center, reducing rework and supporting efficient coordination from survey through final delivery.
Best Suited for Everyday Surveying Work
The Trimble S5 is an ideal solution for teams focused on efficient, repeatable surveying tasks, including:
- General land surveying, boundary and topographic work.
- Construction staking and layout.
- Establishment and verification of control networks.
- Standard civil and infrastructure surveying workflows.
- Hybrid workflows integrating GNSS and imaging systems.
Designed for Growing Survey Teams
The Trimble S5 supports firms that require dependable performance with flexibility to scale over time. Its adaptable design allows teams to expand workflows and integrate additional Trimble solutions without replacing core equipment. It’s a cost-conscious investment that delivers reliably and accurately, without paying for advanced features you may not require.
This makes the Trimble S5 a strong fit for small to medium survey teams, construction contractors and civil and land survey firms operating in modern, fast-moving environments.
